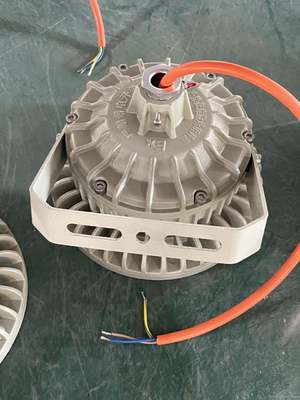

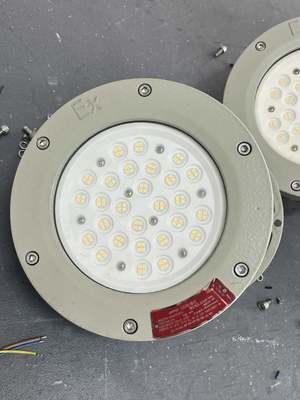

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas
200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas 200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

Image Grand :  200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

Détails sur le produit:
Place of Origin: CHINA
Nom de marque: CROWN EXTRA
Certification: IECEX,ATEX,CE,CNEX,ISO,RoHS
Model Number: GYD830
Conditions de paiement et expédition:
Minimum Order Quantity: 1 SET
Prix: negotiate
Packaging Details: 1SET/CTN
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Per Month

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

description de

Features:



Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wirings.





Application:



Suitable for explosive gas environment Zone1, Zone2.
Suitable for Hazarous dust area: Zone21, Zone22.
Can be used in the environment of temperature group for T1~T6.
Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Verious types terminals for options.





Specification:



Electrical data
Rated voltage 100-240VAC, 50-60Hz
Power factor >0.95
THD <20%
Luminous characteristics
Power consumption [W] 2070 80-100 100-150
Colour rendering [CRI] 70 (±2)
Colour temperature [K] 5700-6500
Luminaire efficiency [Lm/W] 115-135
Beam angle 120° (60°, 90° is optional)
Mechanical data
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 4.8 6.4 8.8 /
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant: Flange; Flat





Company introduction:



Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
