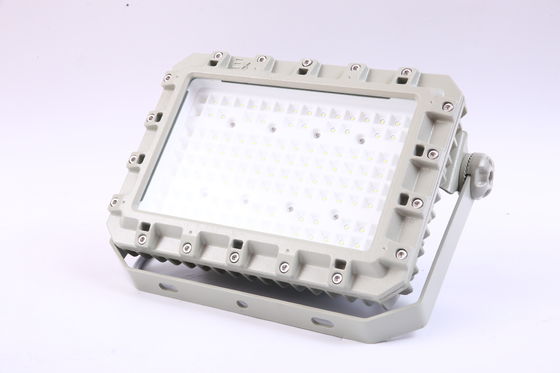

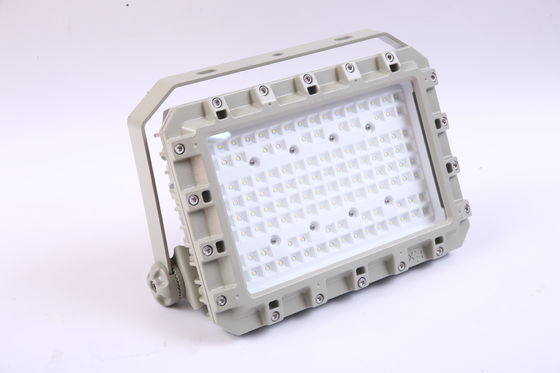

Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified

Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified
Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified

Image Grand :  Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified

Détails sur le produit:
Lieu d'origine: Jiangsu, Chine
Nom de marque: Crown Extra
Certification: ATEX,CE,ROHS,CNEX,ISO9001
Numéro de modèle: Gyd780
Conditions de paiement et expédition:
Quantité de commande min: 1pc
Prix: USD135-180 per pc
Détails d'emballage: Carton 、 Boîte en bois 、 palette
Délai de livraison: 15 jours ouvrables
Conditions de paiement: T / t
Capacité d'approvisionnement: 50000pcs / mois

Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified

description de
Marque: Couronne supplémentaire Nom de produit: Lumière anti-explosion GYD780
Matériel: d'aluminium de type ADC-12 Cri: RA: ≥80
Efficacité: 140lm / w Agréé: CNEX, ATEX, IP66
Montage: Le plafond, le panneau, la lampe de rue, le mur. CCT: 3000/4000/5000/5700K
Tension: AC 100-277V, 50Hz / 60Hz: 24 / 36VDC
Mettre en évidence:

ATEX certified explosion proof LED floodlight

,

IP66 waterproof outdoor LED flood light

,

high voltage explosion proof floodlight

Factory Supply high voltage Explosion proof LED floodlights IP66 Waterproof Outdoor ATEX Certified



GYD780 Series



Features:

Zone 2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications

Isolated LED compartment reducestemperature within driver housing

Multi choice of beamangle for 60° 90° 120°

LED lifetime:100000hrs





Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations





Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber





Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Rated voltage 100-277VAC, 50-60Hz
Power factor >0.95
THD <20%
Power consumption [W] 50-100w,120-150w
Colour rendering [CRI] 70 (±2)
Colour temperature [K] 6000-6500
Luminaire efficiency[Lm/W] 125-130
Beam angle 120° (45°, 90° is optional)
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 10.85,13
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant



GYD780 Series

Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified 0



Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified 1

Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.





Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified 2Factory Supply High Voltage Explosion Proof LED Floodlights IP66 Waterproof Outdoor ATEX Certified 3
