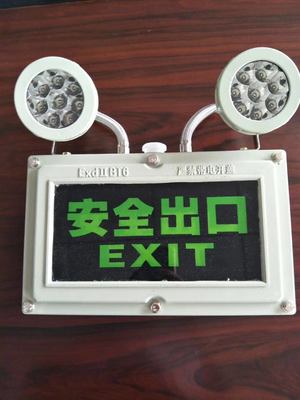

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Certificat
LA CHINE crown extra lighting co. ltd certifications
LA CHINE crown extra lighting co. ltd certifications
Je suis en ligne une discussion en ligne

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light
Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Image Grand :  Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Détails sur le produit:
Lieu d'origine: Jiangsu, Chine
Nom de marque: Crown Extra
Certification: ATEX,CE,ROHS,CNEX,ISO9001
Numéro de modèle: BCJ
Conditions de paiement et expédition:
Quantité de commande min: 1 pièce
Prix: USD51 per pc
Détails d'emballage: Carton 、 Boîte en bois 、 palette
Délai de livraison: 15 jours ouvrables
Conditions de paiement: T/T
Capacité d'approvisionnement: 50000pcs / mois

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

description de
Modèle: BCJ Pouvoir: 2*3W
Taille: 243*570*55 mm Temps d'urgence:: 90min/180min
Poids: 20,7 kg Application: Zone 1, 2 & Zone 21, 22
Efficacité légère: 100LM / W Diplôme IP: IP65
Temps de charge: 24 heures Styles de montage: Mur
Ex marquage: Ex d e IIC T6
Mettre en évidence:

220v wall mounted emergency light

,

explosion proof LED fire light

,

double heads emergency light 90min

Wall Mounted 220v Double Heads 90 min emergency time 20*3w Explosion Proof LED Emergency Fire Light



BCJ Series



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 0

Features:

1. Aluminium alloy for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Multi-mounting arrangements to suit any lighting layout
4. Saves in energy, maintenance and installation costs
5. Instant, bright illumination Instant, bright illumination




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 1





Electrical Data
Ex Marking Ex e IIC T6/ Ex tD A21 T80
Classification Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D
Application Zone 1, 2 & Zone 21, 22
IP Degree IP66
Light source LED 3W
Input Voltage 220VAC, 50/60 Hz/24VDC/24VAC/36VDC
Light efficiency 100-110lm/w
Work time >120 min
Charging time 24 hrs
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 2

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 3
